BMD Pressure Limiting Pilot
The PL30 protects a sense line or low volume piece of equipment from overpressure. Typically used with a PC48.
- Body has a 4000 psi rating
- Adjustable pressure limits up to 300 psi
- Closes and reopens according to the line pressure
FW Murphy is the exclusive BMD distributor for new equipment packages.
The PL30 is a pressure limiter. It can be used to protect a sense line or low volume piece of equipment from overpressure.
The PL30 features a body with a 4000 psi rating and an adjustable pressure limit up to 300 psi. Once the pressure limit is reached, the PL30 closes to prevent over pressure. It reopens once the pressure goes back below the limit.
Typically used to protect the sense line on a PC48 pressure pilot.
Connection: 1/4” FNPT
Pressure Rating: 4000 PSI
Limit Pressure Range: 0 — 300 PSI
NACE Compliant
Compact Design
Adjustable Range

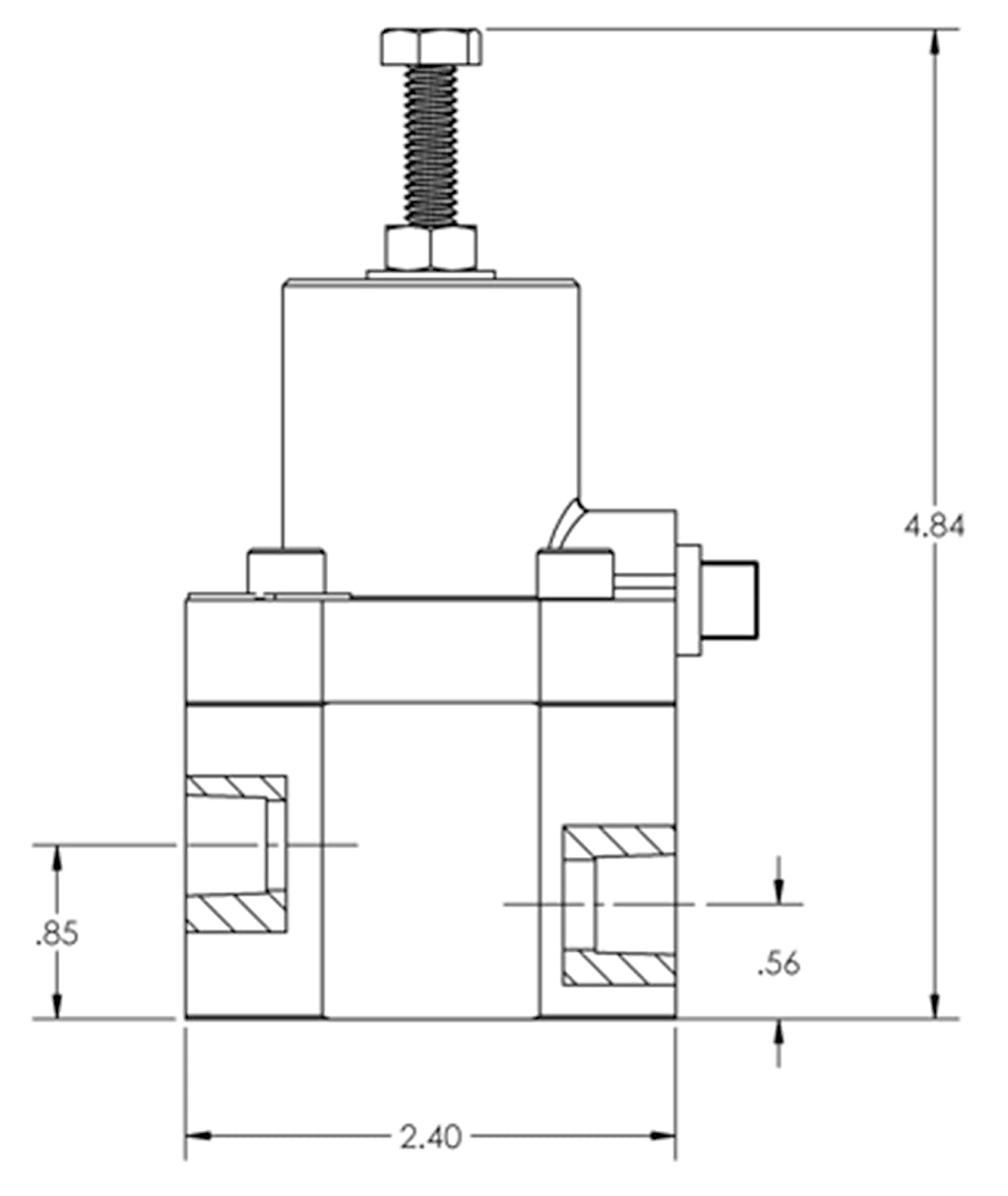

PL30 Dimensions (inches)
For more information about this product, you can download the related literature here:
