The MX4-R2 expansion module provides temperature and frequency input capability to the C5 and future generations of FW Murphy Controllers using CAN proprietary communication with enhanced diagnostics. The MX5-R2 expansion module provides input/output capability to the C5 generation and future generations of FW Murphy Controllers using CAN proprietary communications with enhanced diagnostics.

Dedicated I/O expansion modules
Various models available to I/O requirements
Communications via CAN with Centurion™ controller
Type J or K Thermocouples or 100Ω Pt 3-wire RTD temperature measurement
B+ or B- Digital inputs
Low Voltage Digital outputs (sinking)
0-5V or End-of-Line 0-25mA Analog inputs
DIN Rail Mountable
Approved Certification:
- Class I, Div 2, Grps A, B, C, D Haz. Loc. T4
- Class I, Zone 2, AEx ec [ic] IIC T4 Gc,
  Ex ec [ic] IIC T4 Gc X
- ATEX Zone 2
- IECEx Zone 2

FW Murphy Production Controls offers support for all our products. If you are unable to find the product that you need, please call us at 918-957-1000.

The MX4-R2 expansion module provides temperature and frequency input capability to the C5 and future generations of FW Murphy Controllers using CAN proprietary communication with enhanced diagnostics. Serial RS-485 port and 2 Ethernet ports also provide other communication methods to work with any Modbus RTU or Modbus TCP/IP client device. The MX4-R2 module features 18 thermocouple / 9 RTD inputs and 1 magnetic pickup input. MX4-R2 is backward compatible to MX4.

The MX5-R2 expansion module provides input/output capability to the C5 generation and future generations of FW Murphy Controllers using CAN proprietary communications with enhanced diagnostics. Serial RS-232 or RS-485 ports and 2 Ethernet ports also provide other communication methods to work with any Modbus RTU or Modbus TCP/IP client device. The MX5-R2 module features 24 Digital inputs, 16 Digital outputs, 10 Analog inputs, 4 Analog outputs and 1 magnetic pickup input. MX5-R2 is backward compatible to all models of the MX5.

Any combination of MX-Series modules can be added to enable Digital and Analog I/O and Temperature inputs for communication and monitoring by the master controller.

MX4-R2 Expansion I/O Module

Operating Temperature: -40° to 185° F (-40° to 85° C)
Power input: 14.1 W max 10-30 VDC
All input options individually software selectable
18* temperature inputs:
- J or K Type thermocouples (ungrounded)
- Cold junction compensation
9* 3-wire 100Ω Pt RTD temperature inputs***
Open circuit, short DC-, Short DC+ wire fault detection
One magnetic pickup input* / AC Run Signal:
- 30 Hz – 10 kHz
4 Communication ports:
- Serial RS485
  - Protocol: MODBUS RTU (server)
- CAN
  - Protocol: Proprietary for FW Murphy hardware
- Two Ethernet 10/100 (DLR), Single MAC ID
  - Protocol: Modbus TCP/IP (server) standard or Ethernet/IP (CIP) in Rockwell IO Application Mode
Third-party approvals for MX4-R2:
- Class I, Div 2, Grps A, B, C, D Haz. Loc. T4
- Class I, Zone 2, AEx ec [ic] IIC T4 Gc, Ex ec [ic] IIC T4 Gc X
- ATEX Zone 2
  - II 3G Ex ec [ic] IIC T4 Gc
  - DEMKO 18 ATEX 1926X
    - -40°C ≤ Tamb ≤ +85°C
- IECEx Zone 2
  - Ex ec [ic] IIC T4 Gc
  - IECEx UL 18.0072X
    - -40°C ≤ Tamb ≤ +85°C

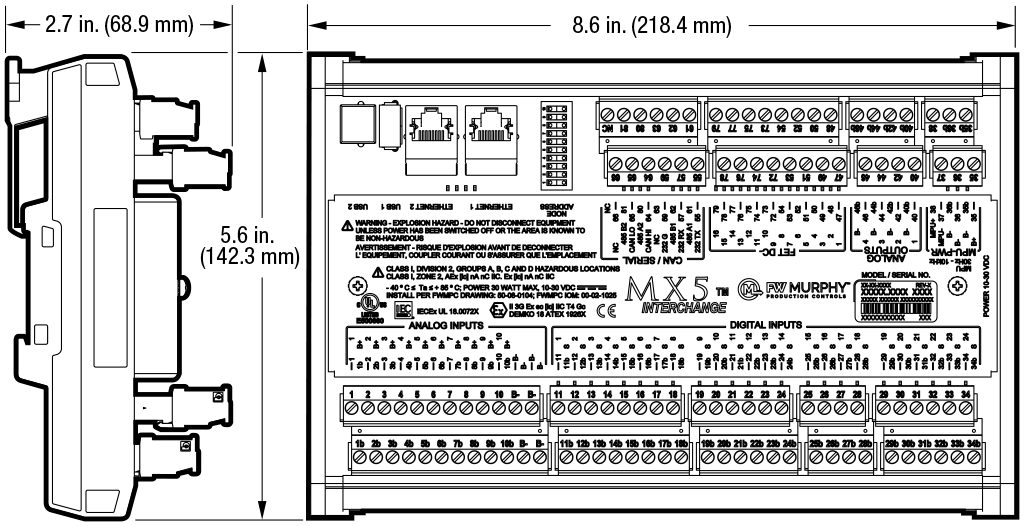

MX5-R2 Expansion I/O Module

Operating temperature: -40° to 185° F (-40° to 85° C)
Power input: 16.5 W max 10-30 VDC
10* Analog inputs:
- 0-24 mA or 0-5 VDC, 15-bit hardware
- 4 channels may be selected to read linear resistive sensor (3kΩ to 30kΩ selectable range)
24⁺⁺*Digital inputs:
- NO or NC (active high/active low) intrinsically safe
- Optically isolated with LED indicators
- Polarity sense / wire fault detection on normally closed systems
- Approved for use with general purpose switches in hazardous areas
One magnetic pickup input*
- 30 Hz to 10 kHz
16⁺⁺* digital outputs:
- LED indicators
- FET (sink)
4 Analog outputs:
- 4-20 mA, 16-bit hardware
6 Communication ports
- Two Serial RS485:
  - Protocol: Modbus RTU (server)
- One Serial RS232:
  - Protocol: Modbus RTU (server)
- One CAN:
  - Protocol: Proprietary for FW Murphy hardware
- Two Ethernet 10/100 (DLR), Single MAC ID:
  - Protocol: Modbus TCP/IP (server) standard or Ethernet/IP (CIP) in Rockwell IO Application Mode
Third-party approvals for MX5-R2:
- Class 1, Div 2, Grps A, B, C, D haz. Loc. T4
- Class 1, Zone 2, AEx ec [ic] IIC T4 Gc, Ex ec [ic] IIC T4 Gc X
- ATEX Zone 2
  - II 3G Ex ec [ic] IIC T4 Gc
  - DEMKO 18 ATEX 1926X
    - -40°C ≤ Tamb ≤ +85°C
- IECEx Zone 2
  - Ex ec [ic] IIC T4 Gc X
  - IECEx UL 18.0072X
    - -40°C ≤ Tamb ≤ +85°C

* Non-incendive. (Digital Inputs, Analog Inputs and Temperature Inputs are intrinsically safe and non-incendive).
⁺⁺Applies only to Centurion Custom and Rockwell Automation Processor Configurations.
*** RTD=Resistive Temperature Device, American RTD Standard, TCR 0.00392, units Ohms/Ohm / deg. between 0-100 C.
