Ignition Control
The 601 is a self-powered Capacitor Discharge (CD) Ignition System which can be installed on any large flywheel, spark-ignited engine. With electronics engine-mounted in close proximity to the flywheel, the unit is powered by magnetic charging circuitry.
- Inexpensive, proven design
- No moving parts to wear out
- More timing accuracy with flywheel mounting
- Compatible with most large flywheel spark-ignited engines
- Provides power for ignition-powered panels
FW Murphy Production Controls offers support for all our products. If you are unable to find the product that you need, please call us at 918-957-1000.
Features of the 601 CD Ignition System include:
- Reliable capacitor discharge circuitry
- High-output, self-powered electromagnetic system
- 30,000 volt output at low rpm
- Crankshaft-referenced timing
- Dual trigger Timing
- One-cylinder applications
- Control circuitry is sealed module
- Self-powered, no external power required

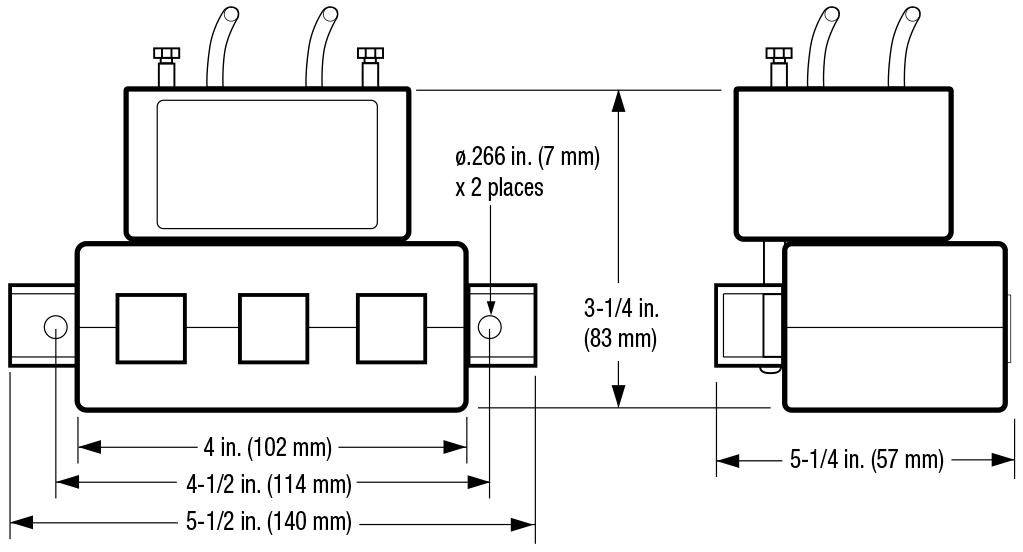

Dimensions 601 CD Ignition

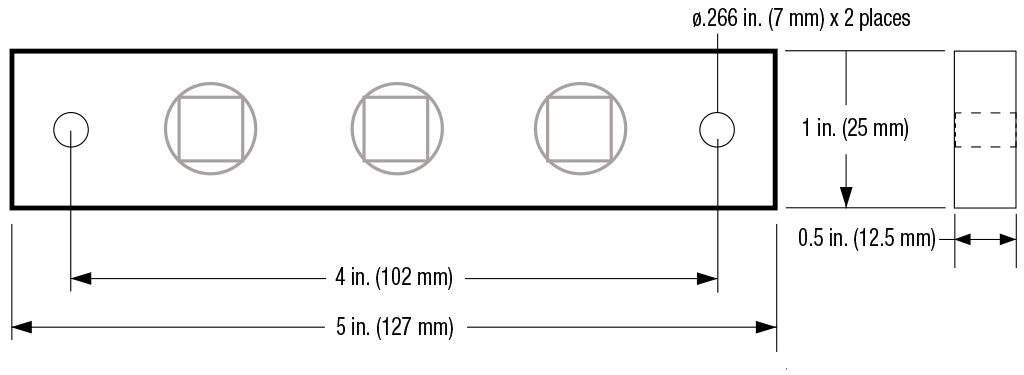

Dimensions 601 CD Charging Bar

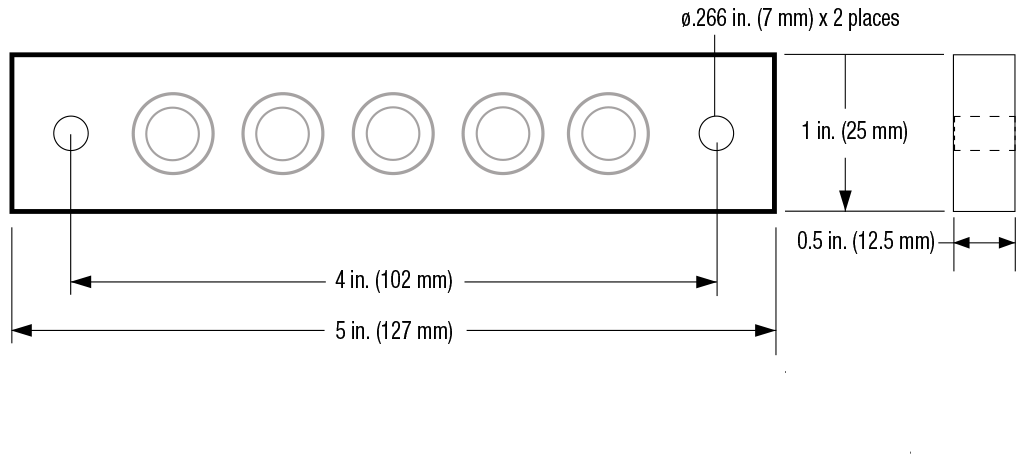

Dimensions 601 CD Trigger Bar

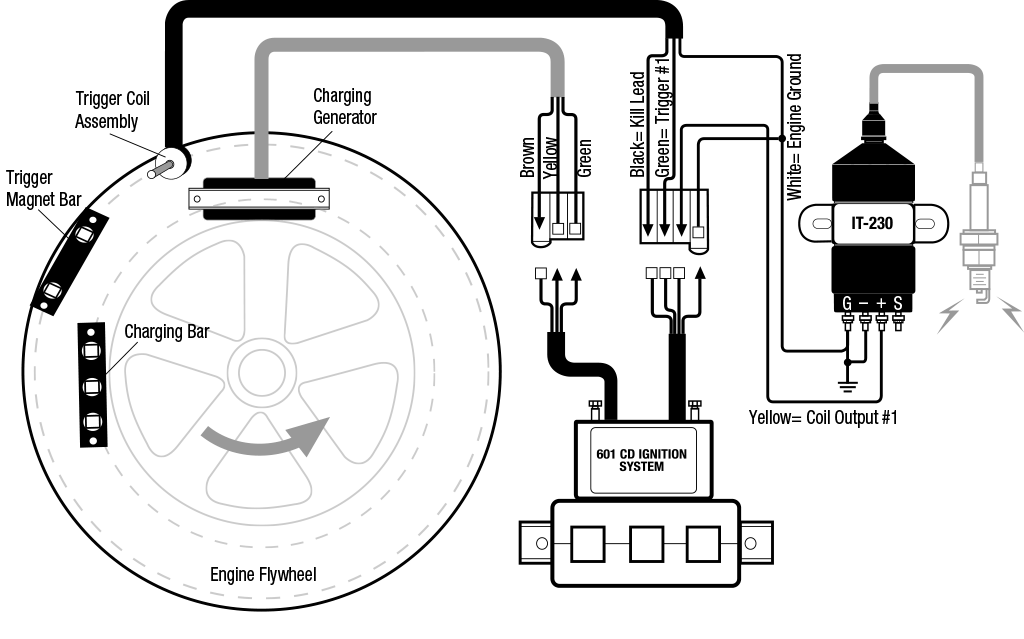

Connection Diagram
For more information about this product, you can download the related literature here:
Note: Some software, manuals and files for this product are only available on the Emissions Controls products extranet. (Assigned username and password required.)
For more information about this product, you can download the related literature here:
Sales Bulletin – (0910517; revision date: 10/2020)
Installation Instructions (00-02-0644; revision date: 04/2015)
